What Is a Rolling Paper Bobbin: Industrial Reel
What is a rolling paper bobbin for factories? A continuous narrow reel of smoking paper. Wound on heavy cores from 3,000m to 6,000m, bobbins feed automated joint machines. Ace quotes rolls and bobbins direct from our mill. I will not ship unslit reels to manual packagers.
Read this specification overview to match slit width, core inner diameter, and tensile requirements for your automated pre-roll machinery.
Industrial Continuous Reels vs Retail Booklets

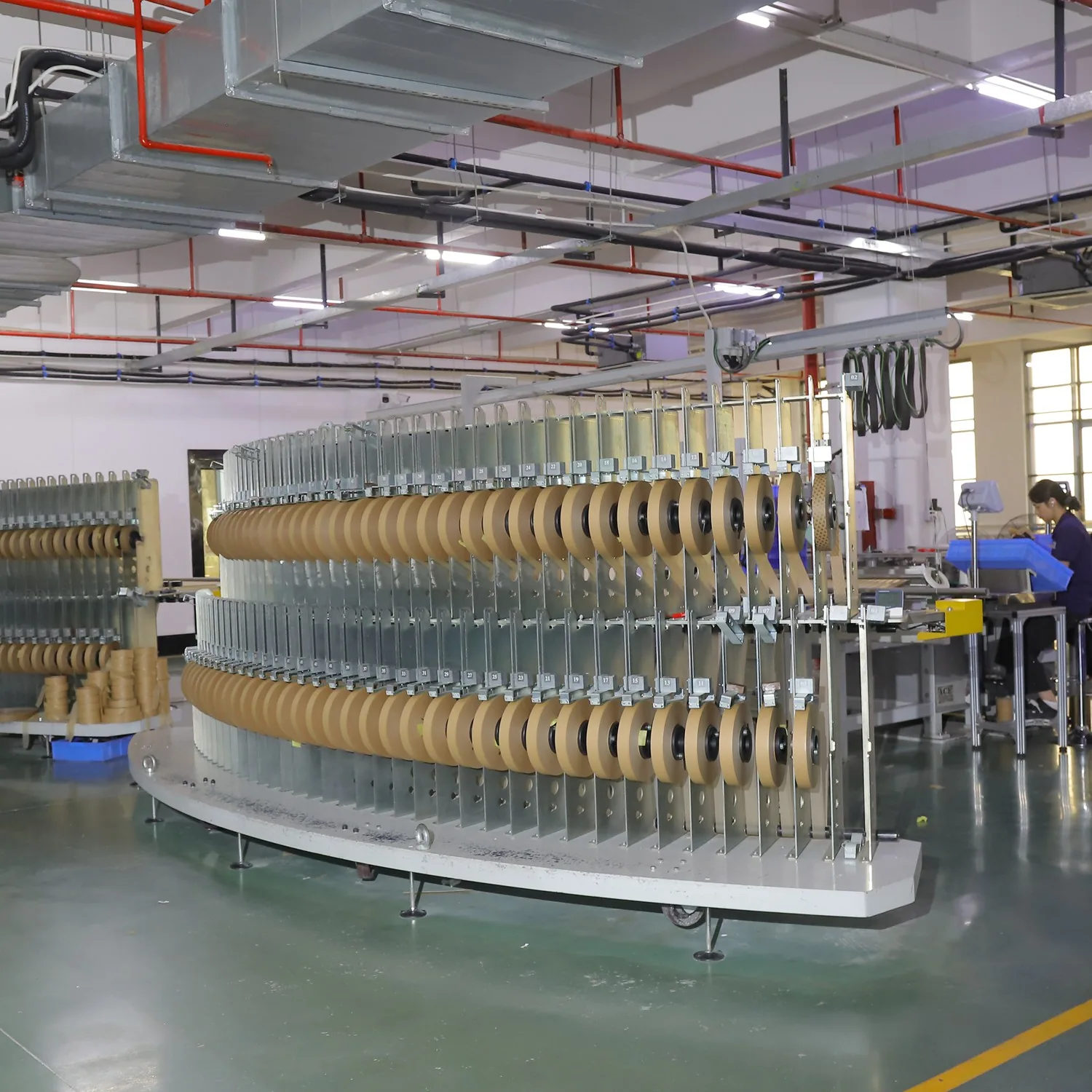

I inspected high-speed commercial filling lines across multiple licensed facilities. Hand-pack operations use pre-cut booklet leaves or formed cones. Modern automated machines (such as the RollPros Blackbird) do not use cones; they roll ground flower from continuous paper reels.
What is a rolling paper bobbin for factories during high-volume production? It is a continuous web slitted to exact millimetre tolerances. In my experience, feeding paper from a bobbin reduces per-unit packaging material expense compared to buying pre-formed cones.
| Parameter | Industrial Paper Bobbin | Pre-Cut Booklet Leaf | Pre-Rolled Empty Cone |
|---|---|---|---|
| Continuous Length | 3,000 m – 6,000 m | 70 mm – 110 mm | Formed 84mm–109mm |
| Core Inner Diameter | 76 mm (3 inch) or 120 mm | None | 26mm paper crutch |
| Application | Automated rolling machines | Manual hand-rolling | Vibration shaker trays |
| Material Cost Tier | Lowest per joint | Medium per joint | Higher per finished unit |
Slitting Widths and Machine Compatibility
Automated joint makers require exact web widths to form consistent cylinder diameters. Standard widths include 36mm for slender formats, 44mm for standard 1 1/4 diameters, and 54mm for king size cigarettes.

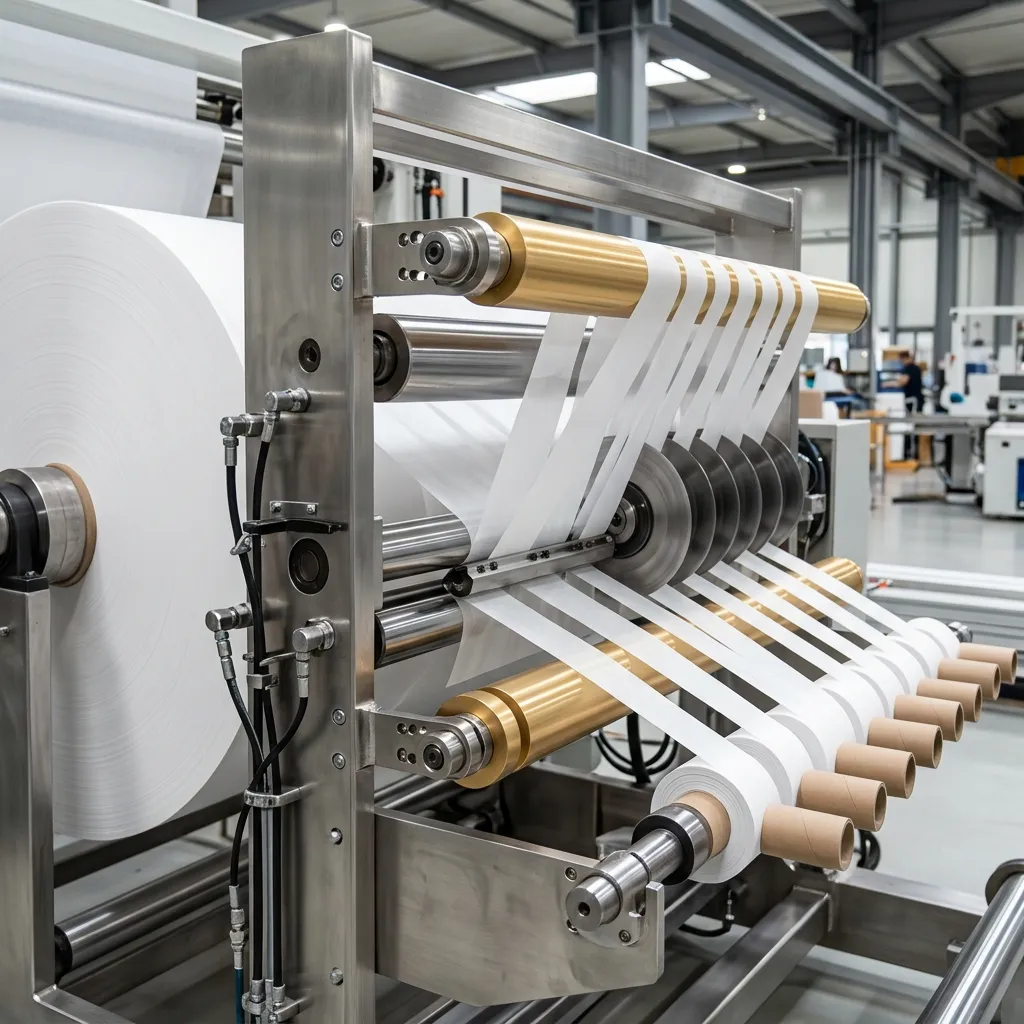

What is a rolling paper bobbin for factories when setting razor slitter blades? Width variation beyond half a millimetre creates overlapping paper edges or loose seams. Ace maintains computerized tension brakes to ensure flat, wrinkle-free rewind edges.
Gumming Options: Pregummed vs Ungummed Reels
Some automated machines use ultrasonic welding or water mist to activate pregummed acacia lines. Other industrial cigarette makers apply liquid glue on the fly via an internal wheel.
Ace supplies both pregummed bobbins (with a 2.5mm dried natural arabic gum line on the left or right edge) and ungummed reels. I confirm glue placement with factory engineers before slitting master rolls.
Ace Industrial Paper Converting Programs
Our Dongguan facility handles paper slitting, bobbin rewinding, and custom packaging. Hengfeng-backed base paper delivers steady tensile strength to prevent web snapping under high tension. We operate under ISO 9001:2015 guidelines and supply optional FSC certified paper stocks.
Explore our manufacturing services: industrial jumbo rolls, pre-rolled cones, and OEM contract manufacturing. Submit your machine reel specifications to our technical team via https://ace-rolling.com/contect/.
Procurement Checklist for Machine Bobbins
I advise production managers to verify four machine parameters before signing off on bobbin purchase orders.
| Technical Parameter | What You Must Specify | Production Impact |
|---|---|---|
| Paper Basis Weight | 12.5 gsm to 18 gsm | Affects burn rate and machine feed tension |
| Bobbin Width | 36mm, 44mm, or 54mm | Determines finished cigarette/joint diameter |
| Core Inner Diameter | 76mm cardboard core | Fits machine rewind spindles |
| Gum Position | Left, right, or ungummed | Matches internal machine glue applicators |
What is a rolling paper bobbin for factories without proper tensile testing? Web breaks cause costly production stoppages. I test tear resistance across every slitting batch before export packing.
FAQ
What is the typical length of a rolling paper bobbin?
Industrial bobbins measure between 3,000 and 6,000 meters in continuous web length. What is a rolling paper bobbin for factories depends on the machine spindle capacity. Larger 6,000m rolls reduce downtime by requiring fewer bobbin changes. Ace quotes custom roll lengths to fit your automated equipment.
What core diameter is standard for machine bobbins?
The standard core size is a 76mm (3-inch) heavy-wall cardboard core. What is a rolling paper bobbin for factories requires a rigid core that does not crush under winding tension. In my experience, 76mm cores fit standard industrial European and American rolling machinery without requiring custom spindle adapters.
Can bobbins be ordered with watermarks?
Yes, Ace supplies custom-watermarked paper on continuous bobbins. What is a rolling paper bobbin for factories can feature dandy-roll watermark patterns repeating along the paper web. Watermarking is applied during the base papermaking process rather than surface printed, maintaining natural burn characteristics.
Do joint-rolling machines require pregummed bobbins?
It depends entirely on your machine model. What is a rolling paper bobbin for factories varies because RollPros machines use pregummed paper activated with light water spray, while Hauni-style cigarette lines apply glue directly. I verify your machine manual to supply the correct gummed or ungummed format.
What paper weights are available on industrial bobbins?
We slit bobbins from ultra-thin 12.5 gsm wood pulp up to 18 gsm unbleached organic hemp paper. What is a rolling paper bobbin for factories requires balancing sheet opacity with machine feed tensile strength. Ace provides sample slit reels so clients can test paper feeding speeds before placing bulk volume orders.
